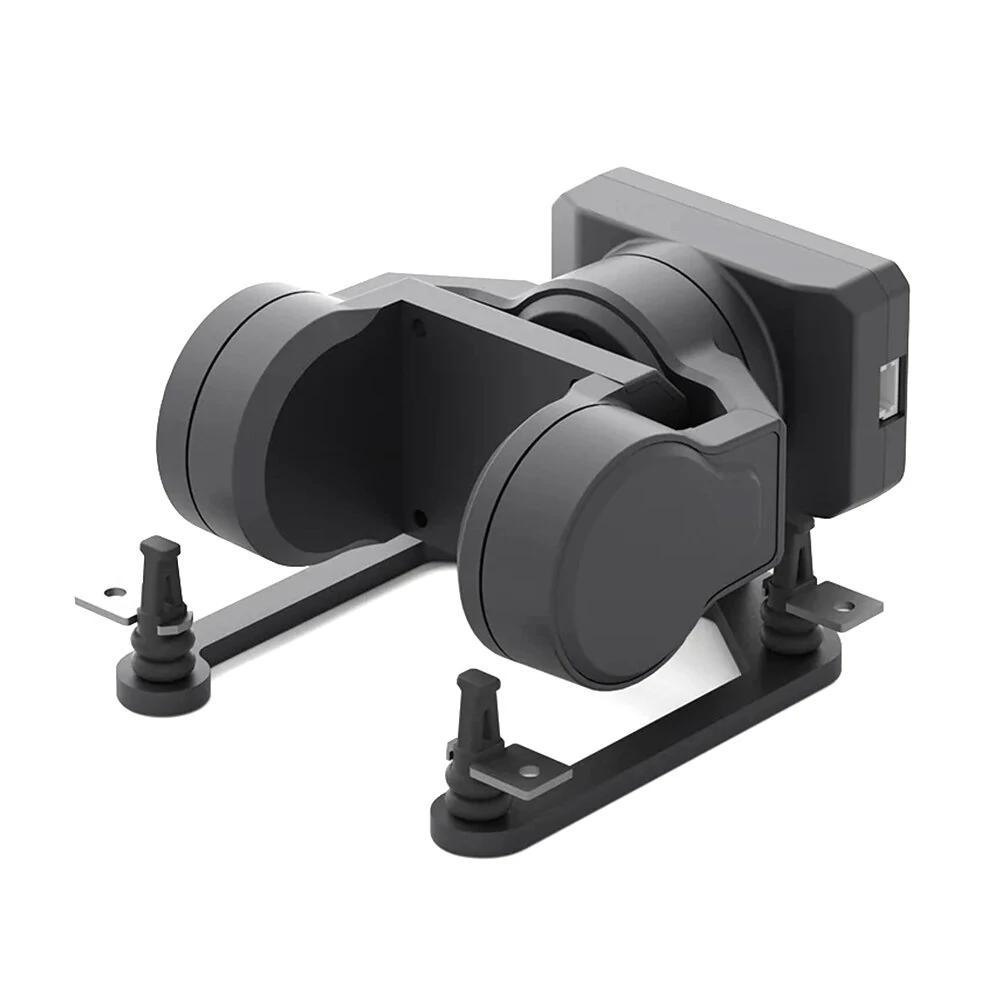

Preface About GM1/GM2/GM3
Based on the feedback and implement head tracking function of goggles, our R & D department team has designed gimbals specifically for FPV cameras. This series includes three models: single-axi, dual-axi, and tri-axi, catering to various user needs. The design of the gimbal is primarily aimed at enhancing the customer user experience, providing them with stable, smooth images, allowing them to easily captur stunning aerial videos and photos. With the addition of the head tracking function, it creates an immersive feeling.
- GM V2 gimbal requires the newly-updated tuning software; legacy software only supports GM first-generation gimbal.
- Latest firmware & PC tool available for free download:https://www.caddxfpv.com/pages/download-center
- No CH1 channel configuration needed after upgrading to the newest firmware. All other settings remain unchanged.
Features:
1.Enhanced FPV Experience
2.Head Tracking Functionality
3.Exceptional Stability
4.Quick Assembly
5.Compatibility
6.Flexibility
– CADDXFPV gimbal is designed to work perfectly with Avatar HD goggles, enabling head tracking functionality. This feature allows the gimbal to follow the movement of your head, making you feel as if you are in the cockpit, enhancing your FPV adventures with unmatched realism and control.
– CADDXFPV gimbal uses advanced mechanical stabilization to effectively reduce camera shake during fligh, ensuring clear and smooth footage even in unstable environments.
– Easily manage gimbal modes and sensitivity through the Avatar goggles menu or via PWM controls, giving you precise control over your gimbal’s behavior.
– No matter if you are using an FPV drone, RC FPV Wing, or RC car, CADDXFPV gimbal series provides the perfect solution for your needs. The gimbal’s broad compatibility ensures it fits seamlessly with various FPV mode. Enhance your FPV experience with unparalleled stability and control, and captur stunning footage every time.
– Equipped with a coaxial cable to connect with VTX, enabling seamless head tracking functionality, and ensuring a fully immersive FPV experience. The quick assembly process makes it simple for anyone to cet up and start using the gimbal.
– Available in three models—single-axi, dual-axi, and three-axi—our gimbal caters to the diverse needs and applications of users. Whether you’re a professional user an amateur enthusiast, the flexibility of CADDXFPV gimbals ensures they can meet the demands of any FPV application.
Specification:
| Model | GM3 V2-20 |
| Camera Compatibility | Avatar/Ascent Series 19/20mm |
| Stabilization Accuracy | ±0.005° |
| Maximum Controllable Speed | ±1500°/s |
| Controllable Rotation Range | Yaw：±160° Pitch: ±120° Roll：±60° |
| Control Method | Uart/ S.bus/ Crsf/ Mavlink/ PWM |
| Head Tracking Control | Supports |
| Static Power | 1.6W |
| Stall Power | 18W |
| Dimensions | 61.5x47x46mm |
| Weight | 48g |
| Model: | GM1 |
| Camera Compatibility: | 19mm FPV Camera |
| Image Stabilization: | ±0.005° |
| Max Controllable Speed: | ±1500°/s |
| Max Controlled Rotational Rang: | pitc: ±120° |
| Size: | 32.2×38.1×20.5mm |
| Weight: | 16g |
| Control Mode: | PWM /UART |
| Head Tracking Control: | Support |
| Voltag: | 7~26V |
| Static Power Dissipation: | 1.0W |
| Model: | GM2 |
| Camera Compatibility: | 19mm FPV Camera |
| Image Stabilization: | ±0.005° |
| Max Controllable Speed: | ±1500°/s |
| Max Controlled Rotational Rang: | Pitc: ±120°, Roll: ±60° |
| Size: | 46.7×46.5×26.2mm |
| Weight: | 30g |
| Control Mode: | PWM /UART |
| Head Tracking Control: | Support |
| Voltag: | 7~26V |
| Static Power Dissipation: | 1.2W |
|
Model: |
GM3 |
| Camera Compatibility: | 19mm FPV Camera |
| Image Stabilization: | ±0.005° |
| Max Controllable Speed: | ±1500°/s |
| Max Controlled Rotational Rang: Pitc: | ±120, Roll: ±60, Yaw: ±160° |
| Size: | 50×46.5x53mm |
| Weight: | 46g |
| Control Mode: | PWM /UART |
| Head Tracking Control: | Support |
| Voltag: | 7~26V |
| Static Power Dissipation: |
1.5W |
Package Included:
1 X GM1 / GM2 / GM3 / GM3 V2
1 X Power Cable 1 X Port Cable 1 X Upgrade Module 1 X Accessory Kit 1 X User Manual
Q&A
Q: Are GM1/GM2/GM3 compatible with all walknsail VTX?
A: The gimbal can’t be used with V1 VTX, Mini 1s, Nano V3 and GT VTX, but can only be used with V2 VTX, V2 VTX Dual and Moonlight VTX.
