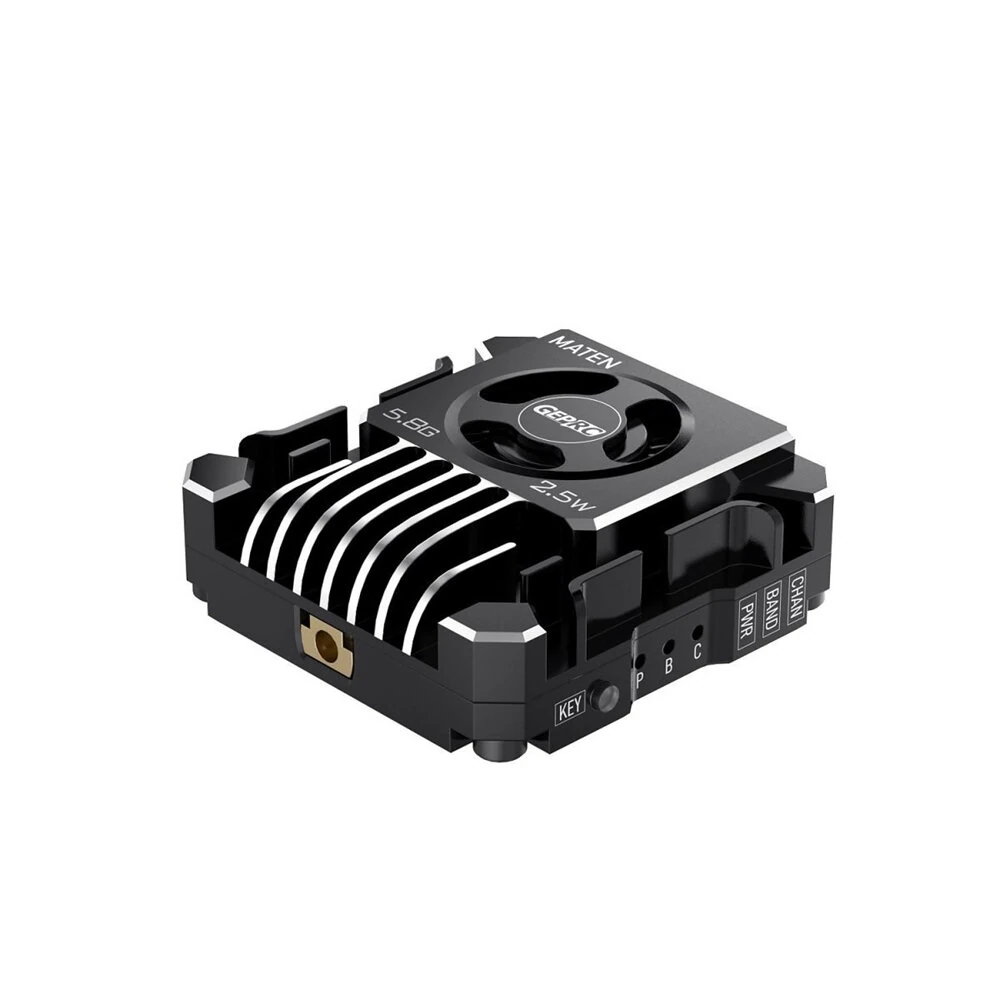

2.5 Watts. The Power to Redefine Long-Range.Most ‘high power’ VTXs top out at 1W or 1.6W. The MATEN VTX PRO pushes to 2500mW—2.5 watts of clean 5.8GHz output. Six selectable power levels let you match output to mission profile:Power LevelUse Case– Pit ModeSafe bench configuration, race event compliance- 25mWIndoor whoop racing, proximity flying- 200mWGeneral freestyle, park flying- 600mWModerate range, light obstacle penetration- 1600mWSerious long-range, bando penetration- 2500mWExtreme range—concrete, canyons, mountain surf48 channels across the full 5.8GHz band. Find a clean frequency anywhere. Switch power levels via IRC Tramp protocol through your Betaflight OSD—no landing, no disarming, no searching for a physical button.CNC Aluminum Shell + Active Turbofan. Cool Under Fire.A 2.5W transmitter generates serious heat. The MATEN solves this with a dual-cooling strategy: a high-strength aluminum alloy CNC shell that passively conducts heat away from the electronics, and a built-in micro turbofan that actively forces air through the housing. The unique appearance design isn’t cosmetic—it’s functional, increasing surface area for heat dissipation. Temperature control protection automatically prevents overheating and thermal damage. Fly 2.5W with confidence, not anxiety.Built-in Microphone. Your Motors Have a Voice.The MATEN carries a built-in microphone that captures real-time flight audio—motor RPM, wind shear, prop wash, environmental sounds. That audio streams alongside your video feed, synced to every frame. Hear your throttle response. Diagnose mechanical issues by sound. Add immersion to every DVR playback. Most VTXs transmit in silence. The MATEN doesn’t.7-36V Input. 5V 600mA Camera Output.Direct 7-36V (2S-8S) LiPo input covers every battery configuration in FPV. The integrated 5V/600mA output rail powers your FPV camera or an additional cooling fan directly—no separate BEC, no extra wiring. ⚠️ Do not connect power input/battery to the 5V Out pin. Serious damage will occur. The 5V output is for camera and fan use only.Dual Mounting Patterns. Fits Every Frame.Two sets of M2 mounting holes: 20×20mm for compact builds and 30.5×30.5mm for standard stack mounting. At 36.3×36.3×12.6mm and 17 grams, the MATEN fits 3-inch toothpicks through 7-inch+ long-range rigs equally well.MMCX + SMA Adapter Included. Full Antenna Flexibility.The native MMCX antenna interface keeps the profile low. The included MMCX copper tube antenna gets you airborne immediately. The included MMCX to SMA adapter opens compatibility with your entire SMA antenna collection. Lightweight MMCX for racing. High-gain SMA directional for long-range. One VTX. All your antennas.Key Features* 2.5W MAX POWER – 6 LEVELS: Pit / 25mW / 200mW / 600mW / 1600mW / 2500mW. From bench to extreme long-range, dial exact power per mission.* IRC TRAMP PROTOCOL: Full OSD control via Betaflight. Switch channels, bands, and power levels without touching the VTX.* BUILT-IN MICROPHONE: Real-time motor and environmental audio transmitted alongside video. Immersive DVR playback. Mechanical diagnostics by sound.* CNC ALUMINUM SHELL + ACTIVE TURBOFAN: Dual-cooling system. Passive conduction + forced air. Temperature control protection prevents thermal damage.* 7-36V INPUT / 5V 600MA OUT: Direct 2S-8S LiPo power. Integrated camera/fan power supply. No external BEC required.* 48CH FULL 5.8GHZ BAND: Every standard channel. Clean frequency in any environment.* DUAL MOUNTING: 20×20MM & 30.5×30.5MM M2: Fits compact builds and standard stacks. 36.3×36.3×12.6mm. 17g.* MMCX + SMA ADAPTER INCLUDED: MMCX copper tube antenna + MMCX to SMA adapter in the box. Universal antenna compatibility.

Specifications:

Notes:

1. Install Antenna before use.

2. To prevent overheating, provide constant airflow and a well ventilated environment. Install a cooling fan if operating in confined conditions.

3. The 5V Output is for a Camera/ Cooling Fan use only! Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.

Includes:

1 x MATEN 5.8G 2.5W VTX PRO

1 x MMCX Copper tube antenna

1 x MMCX to SMA（Internal foramen）connector

1 x sh1.0 6P Connecting cable

6 x M2*5 screw

4 x M2*12 screw
