1.6 Watts. Five Power Levels.

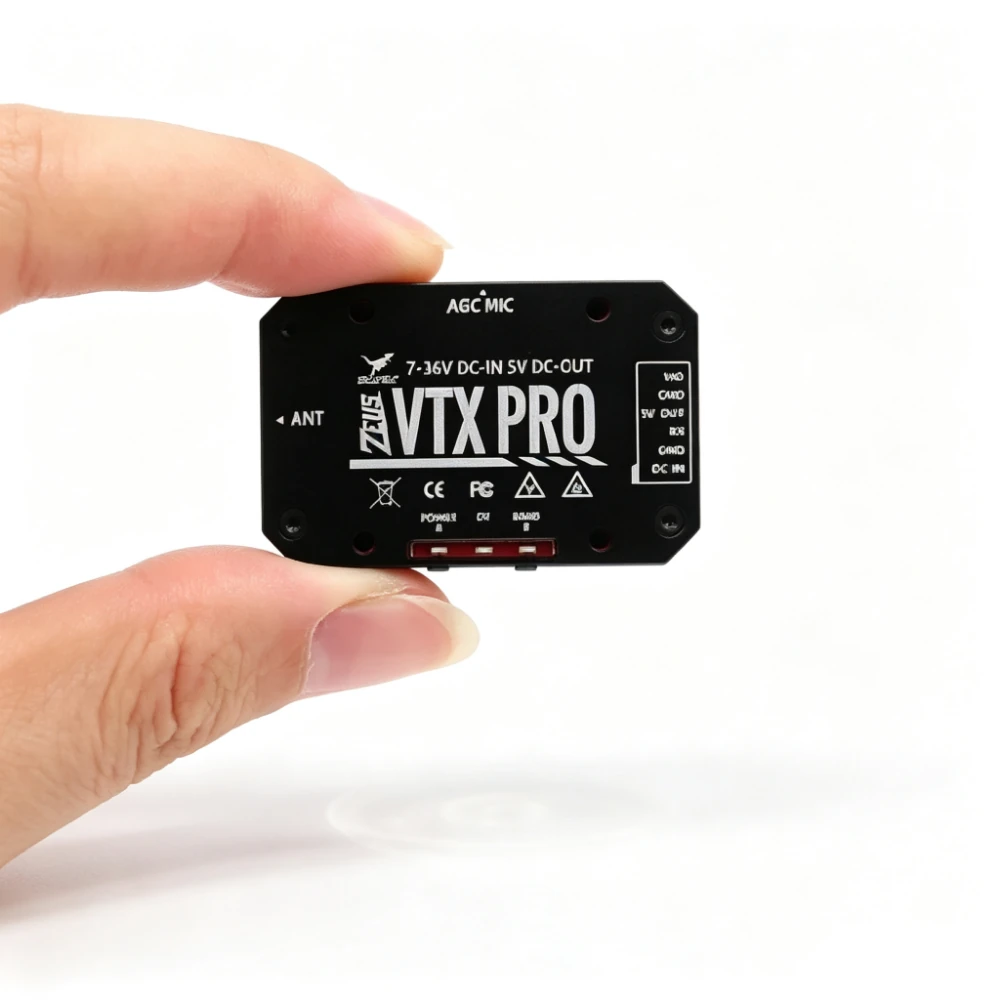

The Zeus VTX PRO pushes up to 1600mW (32.04dBm) of clean 5.8GHz output. Five selectable levels match output to mission:
| Power Level | dBm | Use Case |
|---|---|---|
| PIT | — | Safe bench setup, race compliance |
| 25mW | 13.95 | Indoor whoop, proximity |
| 400mW | 26.02 | General freestyle, park flying |
| 800mW | 29.03 | Moderate long-range, light obstacle penetration |
| 1.6W | 32.04 | Full send—concrete, canyons, extreme range |
Switch levels via IRC Tramp protocol through Betaflight OSD. 40 channels across A/B/E/F/R bands.
Built-in Microphone. Your Motors Have a Voice.
The Zeus VTX PRO carries an onboard mic that captures real-time motor audio and environmental sound alongside your video feed. Hear throttle response. Diagnose issues by sound. Add immersion to every DVR playback.
7-36V Input. 5V 500mA Camera Output.
Direct 7-36V (2S-8S) LiPo power. Integrated 5V/500mA rail powers your FPV camera—no separate BEC required.
13g. 20×20mm M2. MMCX + SMA Adapter Included.
Standard 20×20mm M2 mounting. 25×37×6.5mm footprint. 13 grams. Native MMCX port with included 80mm brass antenna and MMCX to SMA adapter cable for full antenna flexibility.
[Key Features Bullet Points]
* 1.6W MAX – 5 LEVELS: PIT / 25mW / 400mW / 800mW / 1600mW. IRC Tramp OSD control.
* BUILT-IN MICROPHONE: Real-time motor audio transmitted with video. Immersive DVR playback.
* IRC TRAMP PROTOCOL: Full Betaflight OSD control. Switch channels and power without touching the VTX.
* 40CH / 5 BANDS (A/B/E/F/R): Standard 5.8GHz coverage.
* 7-36V INPUT / 5V 500MA OUT: Direct 2S-8S power. Integrated camera supply.
* MMCX + SMA ADAPTER INCLUDED: 80mm MMCX antenna + MMCX to SMA cable in the box.
* 20×20MM M2 / 13G: Standard mounting. Compact and lightweight.
Specification：
| Brand | HGLRC |
| Model | Zeus VTX PRO 1.6W |
| Frequency | 5.8GHz |
| Channels | 40CH (5 Bands: A/B/E/F/R) |
| Power Levels | PIT / 25mW / 400mW / 800mW / 1.6W |
| Protocol | IRC Tramp |
| Built-in Microphone | Yes |
| Input Voltage | DC 7 – 36 V (2S-8S) |
| Output Voltage | 5V @ 500mA (Camera) |
| Antenna Interface | MMCX |
| Cable Interface | GH1.25 6-Pin |
| Dimensions | 25 × 37 × 6.5 mm |
| Mounting Holes | 20 × 20 mm (M2) |
| Weight | 13 g |
Package Included:
1 × Zeus VTX PRO 1.6W
1 × 80mm 5.8G MMCX Linear Brass Antenna
1 × MMCX to SMA 100mm Adapter Cable
1 × GH1.25 6-Pin 100mm Cable
