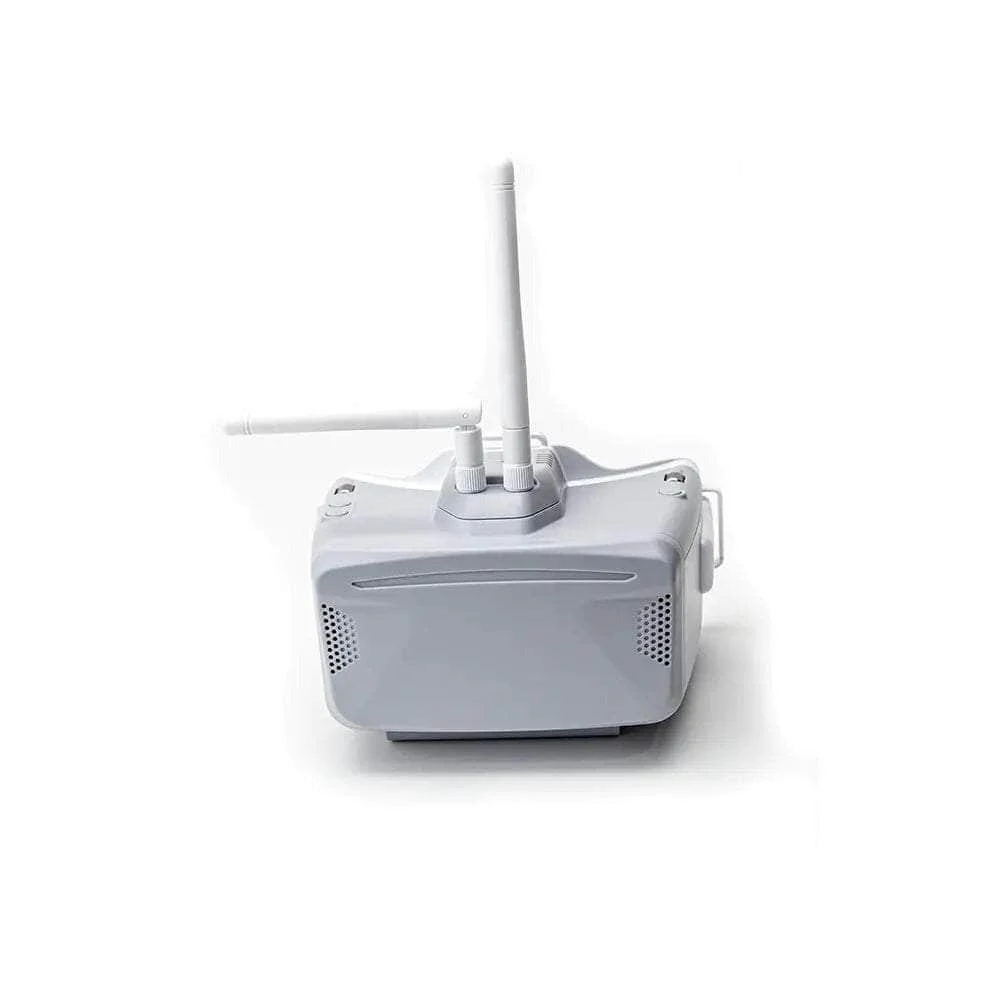

Features
Eliminate signal tearing and dropouts with the 5.8GHz 48CH diversity receiver. The built‑in receiver merges incoming antenna signals to suppress image rolling and static, delivering a stable, clear video feed in multi‑drone races, urban flying zones, and semi‑challenging environments. Full 48‑channel coverage lets you switch instantly to the cleanest available frequency, keeping you in control when signal congestion would otherwise end a flight.
See your flight path in vivid detail on a 16:9 800×480 high‑brightness LCD display. The native 16:9 aspect ratio matches digital FPV camera outputs without stretching or distortion, giving you a natural, immersive view. High luminance and saturated colours make obstacles, gates, and checkpoints clearly visible—even under strong ambient light—so you can react with confidence during high‑speed racing and freestyle manoeuvres.
Fly comfortably with prescription glasses thanks to the spacious eyebox design. The generous interior cavity accommodates standard glasses frames without pressure or pinching. Combined with an ergonomic, adjustable head strap that distributes weight evenly, you can focus on flying for hours without the discomfort or fogging issues common to tighter goggle designs.
Adjust settings mid‑flight with the intuitive shuttle wheel and dual‑language OSD. Roll the wheel to navigate menus, tweak brightness, switch channels, or control DVR functions—no need to remove the goggles or fumble with buttons. English and Chinese language support keeps the interface accessible, while the responsive UI gives you fast access to power settings, display preferences, and recording controls.
Power flexibly from a single 18650 cell, 2S–6S LiPo, or USB/DC input, and record every flight with the built‑in 30FPS DVR. Use an 18650 for lightweight portable flying, plug into your drone battery for extended sessions, or top up via USB at home or in the field. The MJPEG DVR captures smooth 30FPS footage to a microSD card up to 32GB—perfect for reviewing race laps, analysing freestyle tricks, and sharing your best moments.
Specifications:
| Brand: | SKYZONE |
| Model: | COBRA SD |
| User manual | Click here |
| Receiver: | 5.8G 48CH Diversity Receiver |
| Display: | 4.3-inch 800×480 LCD Screen |
| Screen: | LCD |
| Resolution: | 800×480 |
| FOV (Diagonal): | 50° |
| Aspect Ratio: | 16:9 |
| Battery | Battery Not Included |
| Power Supply |
2S-6S LiPo Battery, 1 Cell 18650/DC 6.5-25.2V/USB 5V |
| Power Consumption: | 12V 0.59A 5V 1.4A |
| DVR | MJPEG Encoding, MJPEG 30FPS, SD up to 32Gb |
| Head Tracker: | 3-axis Accelerometer,3-axis gyroscope |
| Special Functions | Built-in Fan, Frequency Scanning Function, Head Tracking Function |
| Operation | New Shuttle Wheel Operation |
| Interface | USB Type-C Interface, HDM1 Input Supported |
| Language Support | 2 – Chinese & English |
| Dimensions: | 122x165x100mm |
| Weight: | 332g |
| Color | Gray |
|
to learn more about the SKYZONE Cobra X V4 with Cobra SD upgrade.
|
Click here |
Skyzone Cobra SD vs Skyzone Cobra X V4
| Parameter | Skyzone Cobra SD | Skyzone Cobra X V4 |
|---|---|---|
| Brand | Skyzone | Skyzone |
| Model | Cobra SD | Cobra X V4 |
| Screen Type | LCD (High Brightness) | LCD (High Luminance, Vivid Colours) |
| Screen Size | 4.3 inch | 4.1 inch |
| Resolution | 800 × 480 | 1280 × 720 |
| FOV | Not specified | 50° Diagonal |
| Aspect Ratio | 16:9 | 4:3 / 16:9 Switchable |
| Receiver | 5.8GHz 48CH Diversity Receiver (Signal Merging) | 5.8GHz 48CH SteadyView Diversity (Advanced Signal Merging) |
| DVR | MJPEG 30FPS | H.264 60FPS, MOV 6Mbps |
| Max microSD | 32 GB |
