Note: The reverse connection of input and output will directly cause the transmission to burn out. Please check it before wiring.

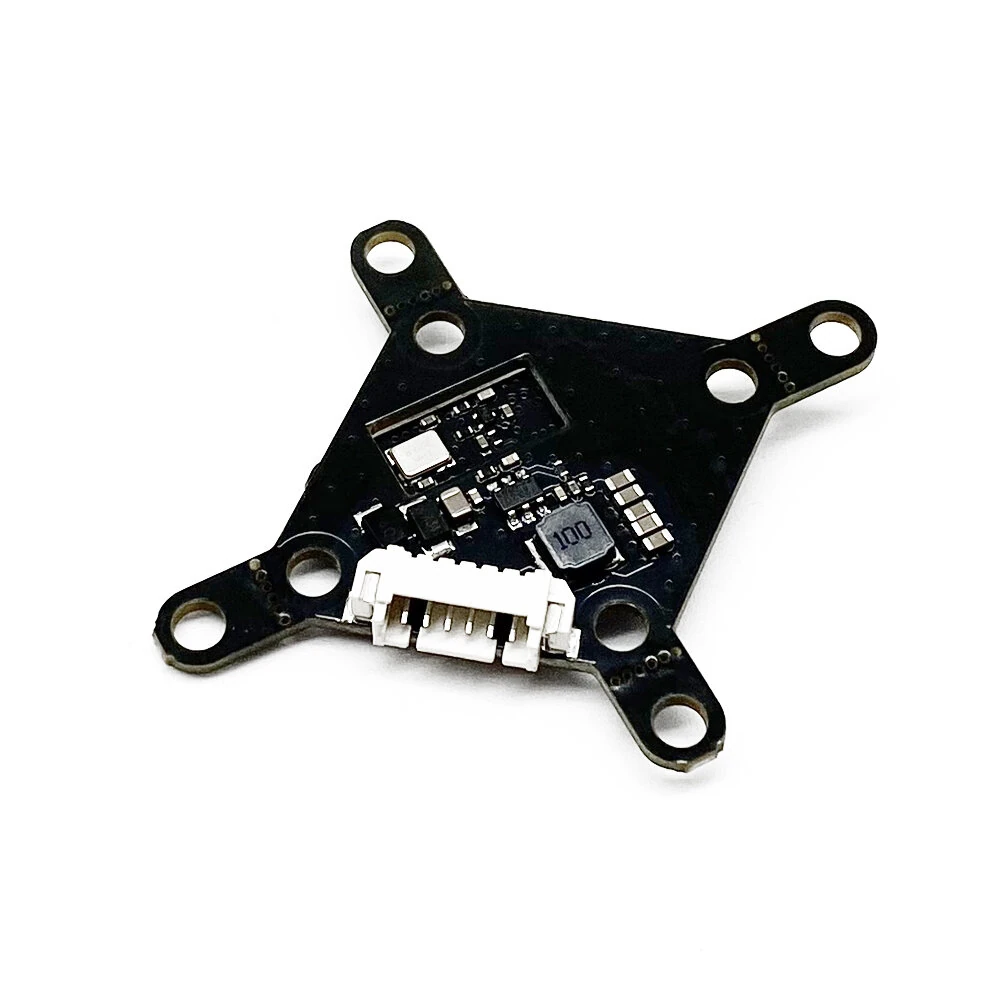

User Manual 500mW VTX

Specifications：

Feature:
– 5.8G 48CH
– Support 7-24V power supply.
– With overheat protection, The blue light goes out when it is too hot.
– Support SmartAudio and key to adjust parameter
– With five-gear power ( Pit/ 25/ 100/ 200/ 500mW)
– Four types of installation holes:16*16/20*20/25 *25/30*30mm
– 12V: 25mW(170mA)/100mW( 230mA)/200mW(270mA)500mW (400mA)

Package included:
1x AV Cable
1x 500mW VTX Transmitter
1x IPEX1 Antenna
